RMS

Remote Monitoring System (RMS) is required to monitor all Transmission sites remotely. This RMS then displayed into NMS Application.

For small cities it would go for unmanned sites for efficiency and automation

BENEFIT

  • Efficient, no need people to watch over all equipments;
  • Accurate report, no human error;
  • RMS is threshold and alarm will alert automatically;
  • Security monitoring alarm for unnamed and remote sites;
  • Monitor certainly all important spots;
  • Preventive action, predict if there’s any deterioration on each equipment’s performance;
  • Ensure the equipments have 24 hours healthy performance.

RMS Hardware

  • Analog/Serial Converter
  • Rack Camera
  • CCTV PoE NVR
  • Digital I/O Converter
  • 8U Wall Mounted Rack
  • Smart Switch
  • Cellular/Satellite Router
  • MCU-Squash
  • Middleware
  • Standalone UPS 1000VA
  • Door Sensor
  • Internal Outlet & PDUs

SINGLE RMS APPLICATION

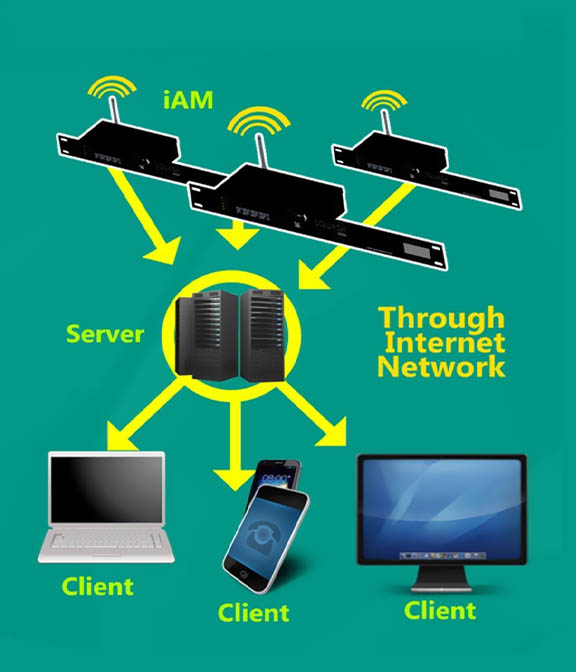

MULTIPLE RMS APPLICATION

RMS & MW EQUIPMENT TYPE

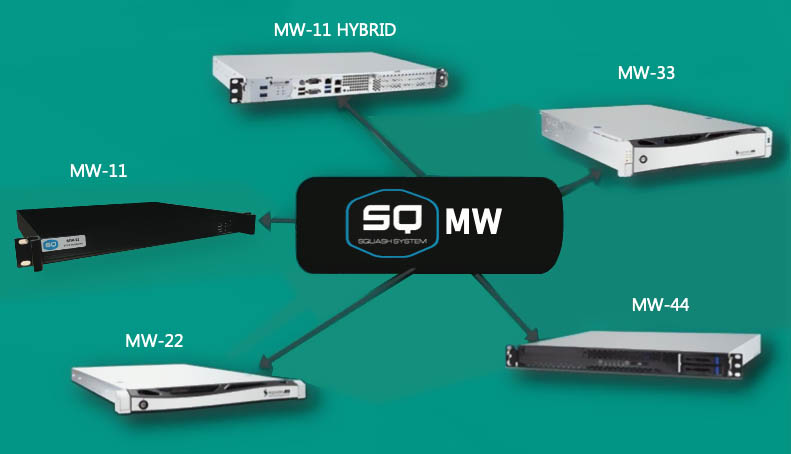

MIDDLEWARE

  • To convert all data that are collected by MCU to certain data format.
  • Arrange the data submission occurrence for each parameter.
  • To parse all real time data into database.
  • Configure data sequence to be transmitted to NMS server.
  • Store temporary data for further source back up data in case NMS server as data collector is fail.
  • As EDGE computing, it creates Event-Driven scenario to conduct action triggered by sensor value.

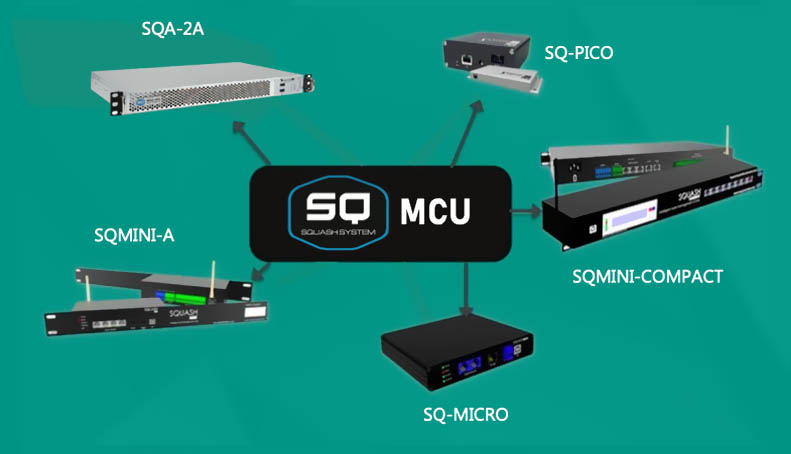

MASTER CONTROL UNIT

  • To gather data from all sensors with various comm. & protocol (Eth, RS232, RS485, Digital input & SNMPN).
  • To store temporarily the data of eacjh sensor.
  • To define alarm according to threshold.
  • To translate the data into propietary data flow

Platform Integration:
